What is a Tempering Valve Used For, and Why Do I Need One?

A tempering valve is used for tempering the hot condensate or hot water discharge from commercial or industrial equipment going to a drain to comply with local, national, and international plumbing codes. According to the IPC (International Plumbing Code) and most state codes, the maximum allowable temperature entering a sewer system is 140°F (60°C) to avoid damage to existing piping.

commericial kitchen dishwasher AdobeStock 470994545 300x183 - What is a Tempering Valve Used For, and Why Do I Need One?

Commercial dishwashers, humidifiers, sterilizers, boiler blowdown lines, and autoclaves produce 180°F+ (82.2°C+) wastewater.

This high-temperature discharge damages PVC piping, which can cause failed inspections, costly fines, interruptions to day-to-day business operations, and damage to personnel.

Tempering valves mix cold water into the equipment discharge to reduce the temperature to acceptable levels before it reaches any PVC piping or public sewers.

How Does a Tempering Valve Work?

Thermostatic drain tempering valves monitor water temperatures and control the cold water supply that mixes with the hot discharge, eliminating the risk of water or waste exceeding 140°F (60°C) going down the drain. If the hot effluent is above the specified set point of the valve (offered in 5-degree increments from 120°F to 140°F), the actuator senses the rising temperature. It signals the valve to open to allow cold water to temper the discharge fluid.

The drain tempering valve (DTV) is a mechanical valve that eliminates the need for electrical solenoid valves or thermostats. It is open only when the effluent exceeds the specified set-point temperature, usually 10°F below the full open temperature, so it conserves water by automatically turning off cold water when not needed.

Where is the Tempering Valve Located?

The tempering valve’s inlet is connected to the cold water supply and installed into the drain line of commercial or industrial equipment. Hence, the flow passes over the thermal actuator to sense the temperature of the water going to drain and prevent over-temperature conditions.

What Are Common DTV Applications?

Industries such as restaurants, hospitality, healthcare, and manufacturing have equipment that requires tempered water before draining. A steam condensate drain cooler, or Drain Tempering Valve (DTV), is typically used in commercial dishwashers, boiler blowdown drain lines, humidifiers, autoclaves, sterilizers, automatic cleaning equipment, or any application discharging scalding water.

drain sink water with DTV AdobeStock 108886226 300x272 - What is a Tempering Valve Used For, and Why Do I Need One?

Drain Tempering Valve Solutions

ThermOmegaTech’s thermostatic DTV is an effective solution for commercial/industrial facilities because it prevents damage to PVC piping, complies with plumbing codes, and meets drain temperature limitations.

It is self-operating, minimizes water waste, is easy to install, and is clog-resistant.

Compared to other solutions, the DTV is compact, adaptable to almost any drain size, and operates automatically to keep drain water within appropriate plumbing code limits.

Protect Your Drains and Water Lines with ThermOmegaTech

If you are starting a project where there is a possibility of high-temperature discharge into the drain/sewer, it needs to be tempered with cold water so as not to damage the drains or piping. A thermostatic drain tempering valve is the most efficient solution to control the water temperature and prevent damage, fines, and scalding.

Getting started has never been easier! Contact ThermOmegaTech to learn how our DTV will protect your client’s systems, piping, and drains.



In the News: PHCP Pros Q&A with Director of Sales for Commercial Plumbing, Tom Ruggierio

The CircuitSolver thermostatic balancing valve has been overcoming water balancing issues for over a decade.

More than ten years ago, ThermOmegaTech developed the CircuitSolver, the first thermostatic balancing valve used in domestic hot water systems to overcome the challenges inherent in traditional manual balancing methods.

This year, ThermOmegaTech is celebrating this milestone.

PHCP Pros recently spoke with Tom Ruggierio, Director of Sales for Commercial Plumbing at ThermOmegaTech and the subject matter expert on thermostatic balancing valve technology and the CircuitSolver thermostatic balancing valve.

CS Angled 1500x884 RBG 300x177 - In the News: PHCP Pros Q&A with Director of Sales for Commercial Plumbing, Tom Ruggierio

PHCP Pros: Who proposed the idea of the thermostatic balancing valve?

Tom Ruggierio: A plumbing sales rep in Texas named Bob Anderson presented the concept of using thermostatic technology to balance domestic hot water systems. That was the genesis of this product.

PHCP Pros: How does CircuitSolver differ from manual or pressure-independent balancing valves?

TR: The manual balancing valves and the pressure-independent valves are both flow devices; the challenge is determining how much flow is required in a branch or riser to offset the heat loss. Building engineers constantly try to determine how much flow they need to cancel the heat loss by manipulating the manual balancing valve or selecting specific flow cartridges with pressure-independent valves.

Two characteristics separate CircuitSolver from the other types of balancing valves. First, it is inherently a temperature device solving a temperature problem. The other two devices are flow devices trying to solve a temperature problem indirectly. Second, CircuitSolver is dynamic, continuously changing the flow rate to maintain a constant temperature. The other types are fixed devices; once you set them, they do not react to changing conditions that may require re-balancing.

PHCP Pros: How does CircuitSolver address the temperature loss problem?

TR: With temperature loss, you’re trying to figure out how much flow you need in a branch or riser. The higher the flow rate, the faster that water will get from point A to point B. CircuitSolver will dynamically adjust the valve’s position to increase or decrease the flow as required to offset the heat loss and maintain a constant temperature.

PHCP Pros: ThermOmegaTech is celebrating CircuitSolver’s 10-plus years of active use in the plumbing and construction industry. How has CircuitSolver evolved over the years?

TR: We have enhanced the product by adding different features based on the feedback from engineers and contractors. We added an integrated union and check valve to CircuitSolver about five years ago. Combining these elements into one valve provides a solution with a better cost-benefit and a more integrated solution with fewer leak points.

In addition, we started creating assemblies with ball valves, strainers, and thermometers, providing temperature measurement capability to the CircuitSolver. We also added several different types of end connections.

Engineers and contractors prefer these assemblies because the trades are hurting for qualified plumbers. Having these assemblies already premanufactured and tested at our Bucks County facility gives the engineer the comfort that when they specify the solution, it will be installed as they designed it; contractors like it because they don’t need to worry about leaks in the assembly.

PHCP Pros: How many variations of the CircuitSolver are out there?

TR: The basic CircuitSolver, which has no union or check valve, ranges from 1/2 inch to 2 inches. The CircuitSolver with the union and check valve comes in 1/2-inch, 3/4-inch, and 1-inch sizes. The assemblies are combined with our union and ball valves with optional strainers and thermometers; all those can be combined with different end connections.

There are a large number of combinations. The enhancements we’ve added over the last ten years result from us listening to the plumbing community and responding to their needs.

PHCP Pros: What’s the latest evolution of the CircuitSolver?

TR: Within the last year, we released a CircuitSolver thermostatic cold water balancing valve used for balancing cold water in domestic water systems.

This product is still in its infancy but has been installed in several VA hospitals to recirculate cold water. This reverse-acting valve works the opposite of a hot water valve because it starts closing its position based on cooling water. Recirculating the cold water in the system eliminates stagnant lines and helps mitigate Legionella and other waterborne pathogens that can develop in the plumbing system, creating health risks.

It also helps keep chlorine distributed throughout the system since the chlorine can start dissipating if it’s not recycled throughout the cold water, and it keeps the temperature of the system more uniform.

PHCP Pros: What would you tell someone specifying a large building on why they should use the CircuitSolver?

TR: Compared to other balancing valves, this system is automatically balanced based on the water’s temperature.

Imagine having a large hotel or a hospital with up to 200 balancing valves. To try and manually balance the system and do it correctly, as well as be able to react to system changes, would be a daunting task. CircuitSolver does it effortlessly. In addition, it eliminates callbacks, which contractors generally think is its most significant advantage.

CircuitSolver is the best solution for anyone challenged with trying to balance a hot water system with a large number of balancing valves. That’s what contractors like about it; they install it and walk away, and the system balances itself within a few hours.

PHCP Pros: Reflecting, what has the uptick been for this technology?

TR: The plumbing industry is very conservative and unwilling to make changes, so you can imagine what it was like when we introduced this new technology ten years ago. We were a new company in the plumbing industry. We had a lot of resistance from plumbing engineers to try our CircuitSolver because it was an unproven technology for balancing domestic hot water systems, which is understandable.

The primary way we got our start early on was strictly out of desperation! There would be situations where people had hot water issues and couldn’t balance the system. They tried all different types of things — changing pumps, water temperature, rebalancing, and rebalancing — to no avail.

They turned to the internet and Googled balancing valves. CircuitSolver appeared in their search. By that point, they were willing to try anything. So, after speaking with us, they tried CircuitSolver, which proved successful. That’s how we started building our success — one installation at a time.

It’s how we overcame the resistance from the plumbing industry to try new technology. Now, our thermostatic balancing valves are the solution of choice when balancing hot water systems.

PHCP Pros: How does CircuitSolver comply with codes or standards?

TR: CircuitSolver has NSF 61 certification. Most states mandate that components used in domestic hot water systems have NSF 61 certification. This certification covers two significant areas: having metal components within the valve that have low/no lead, such as stainless steel, and ensuring that other types of components used in the valves, such as plastic parts, O-rings, and sealants, will not leach harmful chemicals into the potable water system.

This past year, we worked with IAPMO and ASSE to create a thermostatic balancing valve standard. We’re working to get that standard into code to be mandated. It is a big step for the industry, which presently has no standards for any balancing valves. Our goal is to keep everyone safe and comfortable.

PHCP Pros: Is there anything you’d like to add?

Tom Ruggierio headshot1 238x300 - In the News: PHCP Pros Q&A with Director of Sales for Commercial Plumbing, Tom Ruggierio
Tom Ruggierio, Director of Sales for Commercial Plumbing

TR: I want to thank those in the plumbing community for their confidence in our products over the past 10-plus years. We have loyal customers who were naysayers ten years ago; now, they won’t use anything else but CircuitSolver.

We’re very grateful for all the effort our sales reps have put in to help promote this innovative solution and for the engineers and contractors who adopted our CircuitSolver products and used our thermostatic balancing valves religiously.

We thank you!





This feature originally ran on September 4, 2023, with PHCP Pros. Read the full feature here.

New E-Commerce HQ Install CSUAS for Hot Water on Demand

Joe Sargent, Onsite Plumbing Superintendent of W.E. Bowers of Beltsville, Maryland, recently completed a project where he installed CircuitSolver balancing valves in the hot water recirculating system of a large e-commerce company’s headquarters in Arlington, Virginia. This new construction project began in June 2020 and consisted of two 22-story office buildings. The first phase of the project opened to the public earlier this year.

“I chose CircuitSolver valves because of the ease of installation and the lack of maintenance needed for this product,” Sargent explains. “We installed around 70-80 CSUAS.”

AdobeStock 342515250 breaking fround for ecommerce site 300x200 - New E-Commerce HQ Install CSUAS for Hot Water on Demand
The site for the new e-commerce HQ2 in Arlington, Virginia.

The CircuitSolver® Union Assembly with Strainer (CSUAS) features a union with an optional check valve built into the body of the CircuitSolver, particulate filter, and isolation ball valves on either side to reduce the number of system components to be installed and minimize potential leak points.

“I like that they come fully assembled, so there’s not much that my guys or I have to do to install them in-line in the piping,” he says.

Sargent explains that the valves were installed quickly and balanced the system quickly. “Once the rough-in was done and all the equipment was energized, we could circulate hot water immediately,” he said. “They eliminate extra work, extra time, and extra walking around and coordination. I haven’t had any problems with them at all; it’s hard to mess up. Just look at the direction of the flow.”

Before using CircuitSolver balancing valves, he and his team would have to wait for the water balancers to go to every location and balance the circulating water. Now, they can skip that step of the process.

ecommerce HQ2 Arlington VA 2023 AdobeStock 623510766 300x200 - New E-Commerce HQ Install CSUAS for Hot Water on Demand
The new e-commerce site HQ2 in Arlington, Virginia.

About eight years ago, Sargent learned about CircuitSolver when he first saw them in a water piping submittal. He now recommends them due to their ease of installation, plus lack of maintenance.

“I have installed them on my last three projects in the past eight years. I would recommend CircuitSolver to anyone who wants to listen to me! They won’t be disappointed. Once they are installed, there will be no reason to go back to them for maintenance,” he notes. “CircuitSolver eliminates the amount of work you must do in the field.”

Download the Case Study PDF here.

CircuitSolver® balancing valves have many features and accessories. To see the full CircuitSolver line, visit the plumbing products page.



Read this in the January 2024 edition of PM Engineer here.

Drain Tempering Case Study: California Laboratory Remodel

A three-story pharmaceutical laboratory in La Jolla, California, underwent a complete remodel in 2017. The rooftop HVAC unit was replaced, and humidification was required, which presented the need to cool the drainage water.

Lab image AdobeStock 616453370 300x200 - Drain Tempering Case Study: California Laboratory Remodel

“The roof was constructed oddly. Due to where the drain had to terminate, we had minimal fall to work with,” said Ed Parisi, Plumbing Design Manager at ICS (Industrial Commercial Systems), the contractor on this project.

“I had to get on the roof of the building to see what conditions we had to deal with. It was tough logistically to get the slope from the unit to the receptor; we had about eighty feet to travel.” Parisi needed an eighth of an inch per lineal foot to complete the drainage and had about nine and a half inches of fall available.

“We had been using typical devices for cooling humidifier drain water. Some had a tank or odd configurations, but none would fit correctly.” Parisi notes. He needed a better solution.

Parisi was previously introduced to the CircuitSolver product line by Chrissy Hamm of Specification Sales in Southern California. When Parisi was investigating other drainage devices, she suggested the DTV (Drain Tempering Valve). This was Parisi‘s first time using a DTV from ThermOmegaTech. “I didn’t even know it was available!” he said.

“Because [the DTV] just slips into the bottom of the pipe, it made it easy to overcome the lack of fall. Previously, there had been no device for the condensate drain for the steam humidifier at this location. The DTV worked perfectly because it’s such a compact installation. The DTV fits into a tee with the sensor probe extending into the drain flow at the bottom of the drainpipe,” says Parisi.

Homepage DTV scaled e1685909899315 300x168 - Drain Tempering Case Study: California Laboratory Remodel

“The compactness of the DTV makes it a good solution. The technology is more complex but a simpler installation,” said Hamm.

Parisi’s team installed three Drain Tempering Valves for this project. “We installed one DTV on the roof and one in the first-floor laboratory ceiling for a humidifier with limited fall. A DTV was also installed for the lab’s autoclave in their wash/wear room,” he said.

The whole renovation project took about a year. “It was very complex, with eleven different piping systems,” he explains. “The three DTVs worked well. The lab had no issues with drain water that would have been too hot for the drainage piping systems,” Parisi says.

Parisi was very fascinated by this Drain Tempering Valve. “It is one of those valves nobody else would appreciate without understanding the simplicity of this solution and installation,” Parisi explains. “…the DTV is our automatic solution for these systems.”

Compared to other options on the market, Parisi says ThermOmegaTech’s DTV is his favorite. “Their products are first class, extremely reliable, well-engineered, and well-manufactured.”

“I would recommend the DTV for the ease of installation and the lack of needing special conditions (like extra space) or other equipment. [You can] thread it into the drainpipe, connect the water supply, and it’s complete,” Parisi added. “The availability and convenience of getting the product from ThermOmegaTech are also well appreciated.”

Read the Full DTV case study here.

Have a specific drainage system project? The DTV can help! Contact us today.





Case Study: A Magical Castle Comes to Life With the Help of CircuitSolver

Deep in the heart of Southern California, there resides a castle. At the LEGOLAND® Castle Hotel at LEGOLAND California Resort, 250 deluxe LEGO Castle rooms with themes like Knights & Dragons, Royal Princess or Magic Wizard host many visitors from far-off lands, and CircuitSolver had a hand in delighting children of all ages.

2018 04 19 legolandcalifornia castlehotel 001 1 300x200 - Case Study: A Magical Castle Comes to Life With the Help of CircuitSolver
Hotel at LEGOLAND® California Resort (Image via LOCK + LAND, Chip Litherland for LEGOLAND®)

At this magical 3-story hotel in Carlsbad, California, Ed Parisi, Plumbing Design Manager at ICS (Industrial Commercial Systems) installed CircuitSolvers in this construction project. “At ICS, CircuitSolver is our standard balancing valve for all projects,” Parisi notes.

The 250-room hotel is a U-shaped building and required exactly 99 3/4″ CSUA CircuitSolvers. ICS ordered these through Todd Pipe (now Reece) in San Diego.

“This is a typical installation with the CircuitSolvers installed at the end of each DHW branch before it ties into the circulating main,” Parisi says. “In this project, the furthest CircuitSolver was approximately 650 feet of piping away from the Mechanical Room.”

In the LEGOLAND® Castle Hotel, the domestic hot water mains followed the 1st floor corridor through the building and the branches served two or three-story stacks of rooms throughout the building.

2018 04 19 legolandcalifornia castlehotel 221 300x200 - Case Study: A Magical Castle Comes to Life With the Help of CircuitSolver
Castle Hotel at LEGOLAND® California Resort (Image via LOCK + LAND, Chip Litherland for LEGOLAND®)

“Time to tap, I have never seen a building so consistently deliver hot water that fast!” Parisi explains. “I’m impressed with the whole system.”

“Ordering the assembled CircuitSolvers allowed ICS to use less jobsite manpower and also enabled us to install every balancing valve correctly. There were no leaks, and I never had a callback during the warranty period. Nothing but hot water!” he says. “It’s a pleasure to use.”

“ICS used a Grundfos Magna3 circulator pump with an ECM motor set for proportional pressure control. This pump used with the CircuitSolvers provided an extremely efficient circulation system. The commissioning agent complimented the Domestic Hot Water System saying that he had never experienced a system with such consistently low “time to tap” readings. The owner’s maintenance supervisor also complimented the system,” Parisi explains.

The LEGOLAND® Castle Hotel project was completed in April of 2018 and was open to the public that same month.

Parisi was introduced to CircuitSolver in 2012 by Chrissy Hamm from Specification Sales in Ontario, CA. “Chrissy guided me through my first couple of orders and I have only ordered CircuitSolvers since then.

“CircuitSolvers are the premier balancing valves available. Reliable, stainless-steel construction, variable temperature settings available, and all the necessary components to satisfy the most stringent specifications and details. All that plus no manual setting required makes CircuitSolvers a great solution,” he says.

Read the full case study: Legoland Castle Hotel Case Study.

Want to be featured in a case study using CircuitSolver? Contact us here!



ThermOmegaTech Launches Exciting New Video Featuring How CircuitSolver Drastically Changed the Plumbing Landscape

CircuitSolver, a brand of ThermOmegaTech®, is excited to launch its newest Talking With TOTs video. Director of Sales for Commercial Plumbing Tom Ruggierio is featured as the subject matter expert on the inner workings of this thermostatic balancing valve.

ThermOmegaTech® is a leader in the design and manufacture of self-actuating thermostatic temperature control technology. Using their trademarked Thermoloid wax actuator, CircuitSolver® continuously monitors the water temperature and automatically adjusts flow as conditions change to send hot water where needed to accommodate demand variations.

“CircuitSolver thermostatic balancing valves have been installed into thousands of domestic hot water recirculation systems since their introduction to the market in 2012,” says Ruggierio, “This year we are celebrating CircuitSolver’s 10 years of active use in the plumbing and construction industry!”

A Temperature Solution to a Temperature Problem

WEB CSCutaway left 300x236 - ThermOmegaTech Launches Exciting New Video Featuring How CircuitSolver Drastically Changed the Plumbing Landscape

Balancing a Domestic Hot Water System (DHWS) has used the time and energy of many contractors manually balancing and rebalancing to achieve the required flow needed to obtain the same temperature in each branch.

Requiring no power source, CircuitSolver® balances a system based solely on temperature as opposed to pressure or flow.

“During the start-up of a hot water recirculation system, the valve is wide open and will gradually close once the system temperature requirements are met. The valve remains in its closed position to keep hot water in the line, opening as needed when the water temperature drops below the valve’s set-point,” Ruggierio explains. “It takes away a lot of headaches.”

This allows a system to be initially balanced in hours, not days, and to stay balanced even as conditions change. To prevent deadheading the recirculation pump, the valve never fully closes, always allowing a small bypass of flow to the return.

Watch the full Talking With TOTs video here!

CircuitSolver® balancing valves have many features/accessories, including unions, integrated check valves, ProPress ends, ProPEX ends, a thermometer, and/or strainer. To see the full CircuitSolver® line, visit the plumbing products page.

sizes 300x131 - ThermOmegaTech Launches Exciting New Video Featuring How CircuitSolver Drastically Changed the Plumbing Landscape



See the feature on PHCP Pros here!

Benefits of Recirculating Cold Water in VA Facilities to Discourage Legionella Growth

Legionella in Non-Recirculated Cold Water Systems

Stagnant, warm water in a plumbing system increases the risk of Legionella bacteria growth. In cold water systems, adequate flow through high fixture usage and low water temperatures discourage the growth of Legionella and other biofilms. However, in the event flow throughout the system or part of the system is insufficient, standing water can drastically increase the likelihood of bacteria colonization.

When cold water flow is minimal or stopped altogether, as seen during the recent COVID-19 lockdowns that left buildings unoccupied for long periods of time, disinfectant levels evaporate, and temperatures gradually rise in the Legionella growth range, leading to bacteria colonization and uneven free chlorine distribution throughout the system.

Legionella bacteria causes Legionnaires’ disease, a type of pneumonia infecting the lung. People can get sick when they breathe in water droplets or accidentally swallow water containing Legionella.

The CDC says Legionella grows best in a building’s cold water distribution system within a specific temperature range of 77°F-113°F (25°C-45°C). Cold water temperature throughout the system should be maintained at or below 77°F (25°C) to the greatest extent possible to inhibit growth.

CSU CW 1521X685 CMYK 300x135 - Benefits of Recirculating Cold Water in VA Facilities to Discourage Legionella Growth
CircuitSolver® Union Cold Water Balancing valve.

To discourage Legionella bacteria growth, cold water systems need to be recirculated. They must be balanced appropriately to establish continuous flow and keep line temperatures below 68°F (20°C), the point at which Legionella can begin to colonize.

The Veterans Health Administration (VHA) aims to prevent the spread of healthcare-associated Legionella disease and scald injury from water systems in VHA buildings where patients, residents, or visitors stay overnight with the VHA Directive 1061(1).

The directive states, “The use of piping system insulation, automatic drain devices, and recirculation to limit the rate and duration of an increase in cold water temperature in combination with appropriate biocide levels can be effective at preventing Legionella growth.”

The Need for Dynamic Balancing

In order to achieve stability, system balancing must be dynamic – continually addressing the ever-changing conditions. Thermostatic balancing valves adjust dynamically, providing the best opportunity for sustainability and Legionella mitigation. Traditional manual balancing valves could provide a solution to cold water balancing, but their static operation inherently does not factor in nor adapt to the realities of everyday system operation & changes, which may render the balancing obsolete over time.

CircuitSolver® Union Cold Water (CSU-CW) Balancing valve will automatically keep cold water moving and maintain water quality, reducing stagnation and the growth of bacteria.

Utilizing our proprietary thermal actuator as the controlling element, the valve should be installed at the end of each branch or riser in a cold water recirculation system. It will modulate open or closed in response to the water temperature to maintain a specified temperature in the line.

The CSU-CW valve features a union with an optional check valve built into the body of the CircuitSolver® to reduce the number of system components installed and minimize potential leak points.

CSU-CW benefits:

  • Stainless Steel, which is highly resistant to scaling in high mineral content environments
  • High thrust actuator keeps orifice free of debris
  • Union with integrated O-ring for a leak-free seal
  • Keeps water temperature in branches/risers evenly distributed, minimizing heat gain
  • Never fully closes, some water always passing through
  • Provides even distribution of residual chlorine levels

These systems have become more prominent in VA hospitals because of the VHA 1061(1) directive; however, any commercial building such as schools, hotels, high-rise, and multi-family apartment buildings can benefit from implementing a cold-water recirculation system to protect the water lines from the risk of bacteria colonization during periods of low flow or non-use.

Watch how it works and see how the CircuitSolver® Union Cold Water thermostatic balancing valve automatically and continuously balances your cold-water recirculation system to discourage Legionella bacteria colonization and reduce stagnation.

Find out more here.

CircuitSolver® Case Study: Eric McTee of ME Engineers, Inc

CO tupelo honey cafe

Read More

Eric McTee of ME Engineers, Inc in Boulder, Colorado

As a Project Manager at ME Engineers, Plumbing Designer Eric McTee, CPD, is responsible for all aspects of a plumbing system’s design for new constructions and remodeling projects. In domestic hot water recirculation systems, McTee specifies CircuitSolver® thermostatic balancing valves. “I try to have CircuitSolver specified on as many jobs as possible due to its simplicity of it,” states McTee.

Some notable projects where he specified CircuitSolver® are the Laurel Cherry Creek Condominiums in Denver, the Broomfield Service Center, the Tupelo Honey Cafe in Denver, and Lucky Strike Bowling Centers in multiple locations.

McTee, an ASPE Denver Chapter member, first learned of CircuitSolver® from a manufacturer’s representative in 2014. “Straight from the beginning, I liked how it was a simple product that makes balancing a domestic hot water recirculation system really easy; it’s easy for the contractor and easy for the owner,” McTee says. “You install the CircuitSolver®, set it, and forget it. You do not have to worry about the system accidentally being knocked out of balance. I enjoy having a product that allows the system to work seamlessly,” McTee states.

McTee points out that once installed, the system is balanced. There is no way for the owner or a maintenance worker to adjust the valve accidentally and then need to call a balancing contractor to get the system back in line. “That is the number one cause of hot water circulation failures that I have seen,” states McTee.

“The initial cost of the CircuitSolver® is a little higher than a traditional balancing valve, but installation is faster and cheaper.

The system is already balanced and does not require a balancing contractor. [With CircuitSolver®,] you get a better-performing system that you do not have to worry about,” McTee emphasized.

“Any owner planning to hold onto a building for a long time needs to look past the initial cost and look at life-cycle cost. CircuitSolver® would save them money in the long run.” McTee typically specifies the CircuitSolver® assemblies with check valves because it makes it super easy for the contractors to install.

When asked what he likes most about these balancing valves, McTee said, “Compared to manual balancing valves, it is just a superior product. You will get better performance and system longevity out of it since you do not have to worry about rebalancing in the future. I really like the valves…because it makes [the system] easy to control. It is a product I will continue to specify for the rest of my career.”

Download the PDF: Testimonial Eric McTee of ME Engineering CircuitSolver Case Study 2022

Case Study: University of South Florida Fixed Hot Water Wait Times & Saved BIG

USF Email Header 3 - Case Study: University of South Florida Fixed Hot Water Wait Times & Saved BIG

INSTALLATION SITE OVERVIEW

University of South Florida (USF)

The USF is a public university with its main campus located in Tampa. About 10% of the school’s almost 40,000 undergraduate students live in one of the 44 on-campus dormitories. After temporarily shutting down during the height of the coronavirus pandemic in 2020, dorms reopened to students in the Fall of 2021.

THE OPPORTUNITY

Beacon Hall, the newest addition to the university’s on-campus dormitory buildings, opened in August of 2017. A coed, six-story construction, the dorm houses 378 residents in a mix of traditional and suite-style rooms.

Since opening, the 5th-floor gang shower, which is located in the center of the floor with student rooms lining the exterior of the building, had experienced a lot of hot water issues.

Beacon Hall - Case Study: University of South Florida Fixed Hot Water Wait Times & Saved BIG

Mike Bishop, VP of Engineering at RGD Consulting Engineers stated: “Students used to turn on the showers, go to breakfast for 30 minutes, then come back to shower when the water was hot. Otherwise, they were taking a cold shower.”

A major inconvenience to students and a huge waste of water for the university, the system’s hot water demands needed to be re-evaluated.

THE INSTALLATION

After unsuccessful attempts to rectify the hot water supply and balancing issues, the developer contacted RGD Consulting Engineers.

Mike Bishop discovered that the manual balancing valves were a major roadblock in the DHW system functioning correctly due to its inability to adapt to changing system demands, and, with no question, recommended CircuitSolver thermostatic balancing valves.

Working with Spirit Group, a CircuitSolver representative in Florida, thirteen ½” CircuitSolver valves were installed at the end of each branch and one ½” CircuitSolver was placed on the return line to the water heater.

HOW THE CIRCUITSOLVER WORKS

The CircuitSolver® is a thermostatic balancing valve that automatically and continuously adjusts flow through a DHW system to maintain a specified temperature at the end of each hot water supply line. This keeps the system fully balanced with hot water available at all times and on all floors, even with variable and intermittent demands.

On startup, the system automatically balanced itself in under 3 hours, all without manual labor. “In the meantime, the plumber actually went out a did another job,” Bishop mentions, “Then they went and got breakfast, and when they came back [the DHW system] was balanced.”

THE RESULT

Since the installation of CircuitSolvers, all balancing issues in the Beacon Hall dormitory have been resolved. Students are able to take hot showers without 30-minute wait times, and complaints have ceased. Water usage has plummeted, and the extra recirculation pump was removed, effectively reducing utility usage.

As for Mike Bishop, in this balancing case study, he says that the contractor on the job reported a favorable experience. “He was ecstatic! This was his first CircuitSolver job, but he’s going to start using it everywhere.”



1 Balancing Valve: Endless Options

CircuitSolver – It’s More Than a Balancing Valve

To address the demands of domestic hot water balancing and the specific design requirement of different systems, the CircuitSolver thermostatic balancing valve offers a variety of sizes and configurations to satisfy any Domestic Hot Water System (DHWS) design.

CSUA PP TOT Handles 1450x300 1024x212 - 1 Balancing Valve: Endless Options

CircuitSolver Balancing Valve Sizes:

  • ½”
  • ¾”
  • 1”
  • 1¼”
  • 1½”
  • 2”

CircuitSolver Balancing Valve Configurations:

  • Ball Valves
  • Integrated Unions
  • Integrated Check Valves
  • Strainer
  • Thermometer
  • ProPress Ends
  • ProPex Ends

CircuitSolver’s Most Popular Options

CircuitSolver Union (CSU)

Features a union with an optional integrated check valve to reduce the number of components and minimize leak points. Watch Video here.

CSU 1521x685 RBG 300x135 - 1 Balancing Valve: Endless Options

CircuitSolver Union Assembly (CSUA)
Features isolated ball valves on either end of the CSU, allowing for easier installation & service.

CSUA Frontal Transparent 1000x300 - 1 Balancing Valve: Endless Options

CircuitSolver Questions: Asked & Answered

top 5 faqs - CircuitSolver Questions: Asked & Answered

We’ve compiled a list of some Frequently Asked Questions (FAQs) regarding the CircuitSolver product line to answer your questions.

1. My lines are prone to calcium buildup; will CircuitSolver clog?
No, it won’t. The CircuitSolver actuator’s modulation is powerful enough to force out any buildup in its path, developing over 40 lbs. (18kg) of thrust, which is more than enough to break loose any mineral buildup.

Note that mineral buildup is unlikely to occur in CircuitSolver since it mainly occurs where there is a heating surface or a very small leak.

2. Does CircuitSolver shut off tightly?
No. A small leakage (0.2 GPM) is built into CircuitSolver valves even when “closed” to avoid dead-heading the distribution branches.

In some applications where the water distribution piping is occasionally chemically or thermally sterilized, the leakage allows enough of this flow through the system to sterilize the line, regardless of temperature.

3. How much does CircuitSolver cost?
Compared to traditional manual balancing methods, CirucuitSolver reduces overall costs by 44% by saving money on components and labor. See our study here.

4. Where has CircuitSolver been installed?
All over the place! Take a look at our installation map to see where CircuitSolvers are installed near you.

5. How do you select the correct set-point for CircuitSolver?
As described in the product sheets, the “XXX” in the model number is the desired return line temperature. For example, you want the return temperature to be 110°F, and the line size is 3/4”, you would select a CS-3/4-110.

For more FAQs on our CircuitSolver product line, visit our FAQ page.

DHWS Practices: Pump Size Calculations and Other Design Considerations

To ensure a supply of hot water is provided at every fixture in a timely manner, buildings typically utilize a domestic hot water recirculation system in their plumbing design. DHWR systems are considered a best practice in commercial, multi-family, and institutional buildings, especially if designed with thermostatic balancing technology and accurate pump size calculations and other considerations, as listed in this article.

Such recirculation systems should guarantee occupant comfort, safety, and code compliance, as well as water and energy conservation.

DHWS - DHWS Practices: Pump Size Calculations and Other Design Considerations

When designed properly, a DHWS will provide adequate amounts of water at the prescribed temperature to all fixtures and equipment during all times of use while ensuring a cost-effective, efficient, and lasting installation.

How to Improve Your DHWS Design with Thermostatic Balancing Valves

Understand the Importance of Balancing Domestic Hot Water Recirculation Systems

A DHWS needs to be properly balanced to ensure hot water is readily available on-demand, on all floors, and at every fixture.

Water is “lazy” and will flow to the path of least resistance. To ensure there is no short-circuiting and all branches have adequate hot water, a restriction point is needed to create only the flow required to offset heat loss in each branch or riser.

Typically relying on multiple branches off the hot water supply line, domestic hot water systems need a device that can respond dynamically to changing needs.

Traditional balancing valves require manual adjustment to create the flow rate needed in each branch.

Challenges associated with manual balancing:

  • Iterative and time-consuming
  • Difficult to properly set to the correct parameters
  • Static and unable to adjust to the changing conditions of a dynamic system.

DHWS are balanced when unoccupied, so “callbacks” are common to rebalance the system when the building becomes occupied.

Implement Thermostatic Balancing Valves

CircuitSolver® self-actuating, thermostatic balancing valves automatically and continuously adjust the flow of DHWR systems to maintain a specified temperature at the end of each branch.

Dynamically designed, these valves adjust in response to heat loss and demand fluctuations without the need for manual balancing, which ultimately reduces labor time and costs and eliminates hot water complaints.

Calculate Flow Rate to Offset Heat loss

When designing a DHWS, you should calculate the flow required to offset heat loss at the system level. Balancing flow will eliminate the risk of short-circuiting.

Minimizing flow velocity should also be considered to prevent any erosion in copper piping. Erosion can occur when high water velocities and hot water mix in the copper piping.

Ensure Accurate Pump Size Calculations

Inaccurately sizing the recirculation pump in your DHWS can result in many problems that will waste time and money in the long run.

Sizing Too Small can result in not enough flow to maintain temperature throughout the system.

Sizing Too Big tends to be unnecessarily expensive due to the need for larger pumps and wasted energy. Oversized recirculation pumps can wear out copper piping and cause pinhole leaks as well.

To ensure an efficient and economic thermostatically balanced DHWS system, follow ASPE guidelines to determine the recirculation flow rate needed to offset heat loss.

For more information on recirculation pump sizing and demonstration examples of heat loss calculations, check out our Recirculation Pump Sizing Guide.



CircuitSolver Balancing Valve Passes The Hard Water Test – Yet Again

To determine the possible effects of hard water on CircuitSolver’s longevity, ThermOmegaTech has been conducting an ongoing hard water test on the same balancing valve at their headquarters in Warminster, PA since 2013.

A single valve was installed in the facility’s hard water on January 15, 2013, with its performance and appearance evaluated annually. 2021 is the 8th consecutive year that the test CircuitSolver has continued to operate efficiently, with no signs of mineral deposits, wear or fatigue in the installation.

Ongoing Effects of Hard Water Study

To determine exactly how hard the water was before the valve was installed, QC Laboratories, a certified test laboratory in Warminster, PA, analyzed collected water samples and found the hardness of ThermOmegaTech’s water to be 229 mg/L – this is considered “very hard” water.

Typical effects of hard water are often damaging and can include mineral deposits, scale buildup on plumbing fixtures, impaired flow rates, and stained appliances.

Test CircuitSolver as of 2021

The photos below display the test CircuitSolver and its disassembled components when they were removed during the latest inspection in 2021.

373c824b 4aee 474d a2d0 d2e47abe43ed 300x225 - CircuitSolver Balancing Valve Passes The Hard Water Test - Yet Again 4978a807 3c12 4ecf b05b eca60129b4e8 300x225 - CircuitSolver Balancing Valve Passes The Hard Water Test - Yet Again

CS Disassembled 300x74 - CircuitSolver Balancing Valve Passes The Hard Water Test - Yet Again

With no visible signs of mineral deposits, wear, or fatigue, the CircuitSolver continues to cycle normally after 153,120 modulations to date.

After disassembly and inspection, the CircuitSolver was reassembled and returned to the test installation. Click here to read the full study.

Since its debut in 2013, the CircuitSolver thermostatic balancing valve has been proven to make a significant difference in DHWS performance and durability.

To learn more about CircuitSolver and our other plumbing products, click here.

Cases of Legionnaires’ Disease Are Rising in the U.S.

Since its discovery in the summer of 1976, Legionella bacteria has been an ever increasingly hot topic in the plumbing industry, seeming to lurk in pipes and water systems, waiting to strike in a moment of lapsed attention or vigilance.

According to Smithsonian Magazine, the CDC reports that as of 2018, cases of Legionnaires’ Disease, pneumonia caused by aspirating the Legionella bacteria, have risen significantly. With nearly 10,000 cases reported in 2018 alone, Legionnaires seems to be running rampant in modern water systems.

legionnaires Report 1024x678 - Cases of Legionnaires' Disease Are Rising in the U.S.

While some attribute the sharp rise in case numbers to improved reporting, awareness, and testing methods, it has also been suggested that aging infrastructure and climate change could be contributing factors.

Read the full report here.

Reducing The Risk with System Design

While prevalent in modern plumbing systems, Legionella bacteria only presents a risk when able to colonize, typically in stretches of piping with warm, stagnant water. For many buildings, simple changes to system design and management procedures can significantly reduce the prevalence of Legionella bacteria and inhibit growth before it can begin.

1. Avoid “Dead Legs” in Piping Design
Minimizing the distance between supply lines and fixtures in your system design can reduce areas of stagnation in the hot water piping which could accumulate scale and biofilm buildup, a prime location for Legionella bacteria to set up shop.

2. Maintain Water Temperature Control
Legionella bacteria flourishes in warm water with comfortable temperatures ranging from around 70°F to 115°F. Storing water at temperatures above 120°F will generally help prevent colonization.

To prevent bacteria growth, specify hot water tanks that store water above 140°F (60°C) and use a mixing valve to recirculate it to the fixtures at 120°F (48.9°C) to comply with anti-scalding regulations.

Legionella Growth - Cases of Legionnaires' Disease Are Rising in the U.S.

3. Keep Pumps Running Continuously
Keeping your recirculation pumps running at all times will keep water flowing and prevent bacteria from grouping together and adhering to pipe walls.

4. Perform Routine Maintenance of Equipment
The CDC recommends cleaning water tanks routinely including periodically draining the system to remove scale and sediment. This will prevent biofilm, organic debris, and corrosion from contaminating your water system.

CircuitSolver Sanitary Flush Valve

CSUSF 300x106 - Cases of Legionnaires' Disease Are Rising in the U.S.

For domestic hot water systems using a heat-and-flush thermal disinfection method to prevent Legionella bacteria growth, balancing during the flush is essential to ensure thorough sanitation.

CircuitSolver Sanitary Flush Valve utilizes two thermal actuators for automatic thermal balancing of the system; one for normal DHWS operation, and the other for thermal disinfection. Click here to see how it works.

CircuitSolver® Balancing Valve: A Customer Favorite

The dynamically designed CircuitSolver® balancing valve is sweeping the nation, with thousands of installations and lots of happy customers from coast to coast with instant hot water at their fixtures!

CircuitSolver® thermostatic balancing valves are proven to effectively balance DHWS flow and deliver instant hot water, regardless of real-life demand fluctuations. Replacing the headache and callbacks commonly associated with manual balancing, CircuitSolver’s dynamic design save time and money, eliminate callbacks, and keep users happy.

Customers Are LOVING The CircuitSolver® Balancing Valve

“With CircuitSolver®, we could see results quickly. The valves were fully open during startup and gradually closed as each valve reached its set temp, rapidly getting hot water to each line.” – Kavli Institute UCSB

“With the CircuitSolver®, the flow rates are negligible compared to the 20-gallon per minute you would want to have with these 47-floor risers.” – Rittenhouse Hill Apartment Buildings

“A project this size would take 3 or 4 plumbers per building at least 2 weeks to get the system perfectly balanced. With CircuitSolver®, we were able to balance it automatically in much less time.” – USC Student Housing

“I haven’t come across another product like CircuitSolver®. Once you install them you never have to adjust it unlike manual balancing valve where you have to balance every single valve you install.” – Da Vinci Project

“Before we installed CircuitSolver®, we would have wait times between 5-7 minutes for hot water on the higher floors. We received a lot of complaints and would comp between 10-12 rooms a month. Since we’ve installed CircuitSolver® we are getting hot water when we need it and have not had a single complaint. It’s a great product. I’ve never used anything like it.” – Embassy Suites

Past CircuitSolver® Installation Projects:

Click on the images below to read real case studies on how CircuitSolver® saved building owners the headache and cost of manual balancing in their domestic hot water recirculation systems.

Inspira Health - CircuitSolver® Balancing Valve: A Customer Favorite           IUSMQ - CircuitSolver® Balancing Valve: A Customer Favorite

St Elizabeth Healthcare - CircuitSolver® Balancing Valve: A Customer Favorite           The Austonian - CircuitSolver® Balancing Valve: A Customer Favorite







Top 5 CircuitSolver FAQs

CircuitSolver FAQs

Top 5 CircuitSolver Frequently Asked Questions

To answer your CircuitSolver questions, we put together a list of some of our common CircuitSolver FAQs (Frequently Asked Questions) regarding the CircuitSolver product line.

d4d84f58 dd4d 4331 8919 38fe931a52c8 - Top 5 CircuitSolver FAQs

1. What is the GPM when the valve is closed?
When CircuitSolver is closed it does not shut off completely and still allows a fraction of a gallon per minute flow. This allows it to better sample upstream water temperature changes, as well as better facilitate high temperature sanitizing cycles of the domestic hot water system. To determine the GPM, multiply the square root of the pressure differential across the valve by the Cv.

For example, if pressure differential is 4 psi, square root of 4 is 2, and 2 X Cv = GPM.

2. What is the full open rate of CircuitSolver?
The published Cv flow coefficient for each valve size allows calculation of the full open flow rate. Multiply the square root of the pressure differential across the valve by the Cv to get GPM. For example, if pressure differential is 4 psi, square root of 4 is 2, and 2 X Cv = the full open GPM.

3. What is the highest temperature CircuitSolver can handle?
CircuitSolver is rated to a maximum temperature of 250°F (121°C). All the valves can easily handle more than 212°F (100°C) which is the boiling point of water and higher than any water temperature in a domestic hot water system.

4. What is the pressure drop across a CircuitSolver?
The basic approximation for the pressure drop across the CircuitSolver within a given branch utilize the following equation where Cv = design Cv and flow is the estimated flow to offset heat loss in the branch:

For this example – Cv = .85 (design Cv for ¾” CircuitSolver)
Flow = 1 GPM (estimated flow to offset heat loss in a given branch)

ΔP = [GPM/Cv]2  = [1/.85]2  = 1.4 psi

5. Is there a warranty offered with the valve?
Yes, the CircuitSolver product line offers a 3-year warranty.

Balancing Cost Savings with CircuitSolver®

Balancing Cost Savings

Don’t Pay More When You Can Pay Less!

Traditional manual balancing is labor-intensive and time-consuming, requiring several contractors to balance one valve at a time, often revisiting valves over and over to adjust for inadequate flow or temperature. Due to this, manual balancing inevitably leads to hefty labor costs and frequent callbacks to accommodate for the changing demands of a dynamic system.

The CircuitSolver® Solution

The CircuitSolver® thermostatic balancing valve automatically adjusts flow through a domestic hot water recirculation system to maintain a set temperature at the end of each supply branch.

Dynamic and self-modulating, CircuitSolver® balances a system in minutes and automatically directs hot water where it is needed, dynamically adjusting to satisfy changing system needs. CircuitSolver® effectively eliminates the need for manual balancing labor and callbacks, saving a substantial amount of time and money.

Cost Savings

In the Spring of 2020, CircuitSolver® conducted a nationwide survey of plumbing contractors to quantify the cost savings of replacing manual balancing valves with the CircuitSolver® thermostatic balancing valve. Data was collected on total costs associated with balancing a system including total labor time, employee salaries, required contractors per job, frequency of callbacks, and materials used.

The survey concluded that, when directly comparing the total manual vs. thermostatic balancing costs of a 10-story DHWS, implementing the CircuitSolver® balancing valve would reduce total costs by 44%. Click here to see the balancing cost savings calculations!

A Dynamic Valve With Endless Configurations

A Dynamic Valve With Endless Configurations

The CircuitSolver®, a market-leading thermostatic and self-actuating balancing valve,  continuously monitors water temperatures and automatically adjusts flow through domestic hot water recirculation systems to maintain a set temperature at the end of each supply branch, effectively eliminating the need for manual balancing.

CircuitSolver®, the fast-acting, dynamic valve, easily accommodates system demand variations by directing hot water where it is needed, ensuring instant hot water delivery across many floors and fixtures.

Offered in a variety of sizes and configurations including ball valves, integrated unions, check valves, strainers, and ProPress® ends, the CircuitSolver® effortlessly fits into any new or existing DHWS design.

Offering & Optional Configurations

With a variety of sizes and configurations available, the CircuitSolver® valve caters to your unique design specifications and individual needs.

CircuitSolver® (CS)
Our tried and trusted original balancing valve.

CircuitSolver® Union (CSU)
Integrated union and optional check valve to reduce the number of system components being installed.

CircuitSolver® Union Assembly (CSUA)
Adds isolation ball valves on either end of the CSU for easy installation and service.

CircuitSolver® Union Strainer Assembly (CSUSA)
Integrated strainer for dirt or particulates to facilitate system start-up and protect valve components and operation.

CircuitSolver® with Viega ProPress®
Seamless integration into ProPress® systems.

CircuitSolver® Thermometer Assembly
Monitors system temperature with an easy-to-read dial for instant hot water temperature verification.

CircuitSolver Embrace the Technology logo RBG 01 1 300x69 - A Dynamic Valve With Endless Configurations

Case Study: CircuitSolver Install at the Mental Health Institute of Quebec

CircuitSolver Install: Mental Health Institute of Quebec Case Study

The below CircuitSolver install case study features a project from our neighbors in the North.

Installation Site Overview

iusmg 300x167 - Case Study: CircuitSolver Install at the Mental Health Institute of Quebec
Aerial View of IUSMQ

The Mental Health Institute of Quebec (IUSMQ) is a hospital specializing in psychiatric care. Founded in Quebec City in 2009, the facility has more than 500 beds for short-term and long-term psychiatric care.

IUSMQ is a large building with up to 6 floors in some wings and a total floor area of about 160,000 m². To accommodate changing staff and patient needs, the IUSMQ’s main pavilion was recently renovated, with updates being made to the domestic hot water recirculation system.

The Opportunity

Instead of implementing an army of traditional hot water heaters to supply the sprawling facility, IUSMQ’s water supply is heated by a hospital-owned power plant and distributed throughout its wings and floors.

To account for the heat loss that occurred as the hot water traveled through the building’s long recirculation lines, the power plant had to intentionally “overheat” the water being delivered to IUSMQ.

However, as a result of new standards and regulations, the hospital was required to adjust the temperature of incoming water to a safer level.

According to the building’s consultant, André Renaud, this resulted in the hospital experiencing a lack of hot water in some areas.

The Installation

Renaud initially reviewed the recirculation system to determine the fixed flow rate needed to offset heat loss and consumption. According to his calculations, the main recirculation piping would not be able to withstand the high flow rate required due to the risk of premature erosion of the copper piping.

Due to this, the consultant chose to replace the system’s fixed flow valves with 108 CircuitSolvers. sizes 300x131 - Case Study: CircuitSolver Install at the Mental Health Institute of Quebec
Installed in-line, CircuitSolver is a self-actuating, thermostatic recirculation valve that automatically and continuously adjusts flow to maintain a specified temperature at the end of each domestic hot water supply line.

CircuitSolver bases dynamic flow rates solely on fluid temperature, easily accommodating for passive system heat loss and demand fluctuations, with no need for re-balancing.

By switching to the CircuitSolver, Renaud eliminated the labor and guesswork associated with the manual balancing of fixed flow valves.

The Result

After a quick and easy install and almost instantaneous automatic balancing, hot water is now available throughout the entire main pavilion on demand.

View the full case study: Mental Health Institute of Quebec Install

Code Compliant DTV – Simplify By Plumbing For Compliance

Code Compliant DTV – Simplify By Plumbing For Compliance

As a component of their normal operation, commercial equipment such as dishwashers, combi ovens, and steam humidifiers discharge superheated steam and water. This effluent needs to be tempered down before going to the drain and entering public sewers.

ThermOmegaTech® offers the drain tempering valve (DTV) to simplify this process and comply with drain temperature limitations of international plumbing codes.

See some FAQs about the DTV below.


bd33d443 ac22 4ea3 ae49 9694fdbd4e07 1024x410 - Code Compliant DTV - Simplify By Plumbing For Compliance

FAQ #1: When should the DTV be used?

A DTV should be used in any application where drain effluent with temperatures exceeding 140°F must be cooled prior to entering a public sewer in accordance with plumbing codes.

Failure to comply with these temperature limitations may lead to failed inspections, fines, and damage to PVC piping or equipment.

FAQ #2: How does the DTV work?

The DTV is installed into the drain line so that the hot effluent passes over the thermostatic actuator to constantly monitor drain water temperature. When effluent temperatures rise above the valve’s set-point, the valve will automatically modulate open to allow cold water to flow into the drain, cooling the effluent.

Once the effluent’s temperature falls below the set-point, the DTV modulates closed, cutting off cold water flow to conserve water.

FAQ #3: Can the DTV handle steam?

Yes, the DTV can handle fluid temperatures up to 250°F.

FAQ #4: What sizes are available?

The DTV is offered in 1/2″, 3/4″, and 1″ sizes in both brass and stainless steel.

FAQ #5: How do I select a size?

Use our online DTV Flow Calculator! To view the calculator, click here

Reliable and self-operating, the DTV ensures drain water temperatures comply with internationally mandated plumbing regulations.

For more information on the DTV, we invite you to visit our website or to contact our team of product experts.

CircuitSolver Competition: How Other Balancing Valves Measure Up

CircuitSolver Competition: How Other Balancing Valves Measure Up

Design engineers have a few options to choose from when selecting a balancing valve to include in a domestic hot water system.

The differences between the valves are not always readily available, and the amount of information on the internet can be overwhelming to distill down on calls with engineers or contractors.

Check out our easy-to-understand charts below to see how the CircuitSolver® compares to other thermostatic balancing valves now on the market:

ThermOmegaTech CircuitSolver® Caleffi ThermoSetter® Acorn TZV
TempFlow®
Bell & Gossett Temp Setter™
Manufacture Location [1] USA Italy ??? ???
NSF 61 Certified [2] Yes Yes No Yes
Material of Valve Stainless Steel Brass Brass Stainless Steel Internals
Years of Install Nine One One One
Optional Temperature Gauge Yes Yes Yes No
Field Adjustable No Yes Yes Yes
Factory Set Yes Yes Yes Yes
Tamper Proof [3] Yes No No No
Integrated Union Option [4] Yes No No No
Integrated Check Valve Option Yes Yes Yes No
Optional Ball Valves Yes – 2 No Yes – 3 No
Optional ProPress Ends Yes No No No
Optional Strainer Yes No No No
Maximum Working Pressure 200 PSI 230 PSI 150 PSI 145 PSI
Maximum Allowable Temperature 250°F 195°F 180°F 150°F
Available Sizes [5] 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ 1/2″ & 3/4″ 1/2″ 1/2″ & 3/4″

Notes:
[1] CircuitSolver® meets the requirements of the “Buy America” and “Buy American” Acts.
[2] All but one state in the USA, Hawaii, requires or recommends NSF 61 certification for all components of the domestic hot water system.( http://www.nsf.org/newsroom_pdf/water_asdwa_survey.pdf ) See pg. 5.

[3] The ability to maintain system design without unexpected adjustments being made to balancing valves. [4] An integrated union allows for easy servicing.
[5] Frequently 1” balancing valves are used in higher flow applications and in return line back to the hot water heater.



Thermal Disinfection Options

High-temperature sanitary flushes are performed in domestic hot water recirculation systems to kill Legionella bacteria and prevent growth.

The CircuitSolver® Sanitary Flush Valve features a dual-actuator to automatically balance the DHWS, even during the disinfection process. A “low-temp” actuator balances the system during normal operation, and a second “high-temp” actuator allows for maximum flow during the high-temperature flush.

ThermOmegaTech CircuitSolver® Union Sanitary Flush Caleffi ThermoSetter® Acorn TZV
TempFlow®
Bell & Gossett Temp Setter™
Temperature Well Yes Yes Yes No
Field Adjustable No Yes Yes Yes
Thermal Disinfection
Add-On Option [1]
No Yes No No
Manually Adjust for High Temperature Flush No No Yes Yes
Factory Set Yes Yes Yes Yes
Integrated Union Yes No No No
Integrated Check Valve Standard Yes No Yes No
Maximum Working Pressure 200 PSI 230 PSI 125 PSI 145 PSI
Maximum Temperature 250°F 195°F 180°F 150°F
Available Sizes [2] ½”, ¾”, & 1” ½” & ¾” ½” ½” & ¾”

Notes:
[1] Thermal disinfection option can be added to standard valve without purchase of separate thermal disinfection valve.
[2] Depending on flow rates for thermal disinfection, a larger valve may be preferred.

Visit our website for additional productsliteratureFAQs, and a list of installs.

Should you have any questions about the above CircuitSolver competition comparison charts, please do not hesitate to contact our dedicated team of product experts.

Guaranteed Drain Effluent Compliance with the DTV

Guaranteed Drain Effluent Compliance with the DTV

Temperature is often a subjective experience – how cold is jacket weather, how hot is too hot for a shower, etc.

What is never subjective? Drain effluent temperature restrictions.

Drain water from commercial equipment exceeding the 140°F cut-off point can significantly impact a business’ operations due to failed inspections, fines, and damaged PVC piping.

To simplify compliance with international plumbing codes governing effluent flow, ThermOmegaTech offers the drain tempering valve (DTV). Compact and effective, the DTV is 100% self-operating and is incredibly easy to install on new or pre-existing commercial equipment set-ups.

DTVs2 1024x410 - Guaranteed Drain Effluent Compliance with the DTV

The DTV is installed into the equipment’s drain line so the hot effluent flows over the valve’s thermal actuator, with a cold water supply on the valve’s inlet. While there, the DTV continuously monitors effluent temperatures.

When the effluent’s temperature reaches the DTV’s set-point, the valve will automatically open to mix in cold water and temper down the effluent into compliance range.

Once the effluent temperature has fallen to the DTV’s set-point, the valve will shut off the cold flow to conserve water.



Selecting a DTV

The DTV is offered in several sizes with differing flow rates. To streamline selecting the size best suited to your individual tempering application, use our online DTV Flow Calculator tool.

Don’t sweat the next inspector’s visit – choose the drain tempering valve for guaranteed effluent compliance with all international plumbing codes.

For more information on the DTV or our other plumbing products, we invite you to visit the CircuitSolver website for product sheets

Should you have any questions, please do not hesitate to contact our team of product experts or your dedicated local representative.

Drain Tempering Valve FAQs

Drain Tempering Valve FAQs

As a component of their normal operation, commercial equipment such as dishwashers, combi ovens, and steam humidifiers discharge super heated steam and water. This effluent needs to be tempered down before going to drain and entering public sewers. ThermOmegaTech® offers the drain tempering valve (DTV) to simplify this process and comply with drain temperature limitations of international plumbing codes.

See some FAQs about the DTV below.

DTV faqs 1024x410 - Drain Tempering Valve FAQs

FAQ #1: When should the DTV be used?

A DTV should be used in any application where drain effluent with temperatures exceeding 140°F must be cooled prior to entering a public sewer in accordance with plumbing codes.

Failure to comply with these temperature limitations may lead to failed inspections, fines, and damage to PVC piping or equipment.



FAQ #2: How does the DTV work?

The DTV is installed into the drain line so that the hot effluent passes over the thermostatic actuator to constantly monitor drain water temperature. When effluent temperatures rise above the valve’s set-point, the valve will automatically modulate open to allow cold water to flow into the drain, cooling the effluent.

Once the effluent’s temperature falls below the set-point, the DTV modulates closed, cutting off cold water flow to conserve water.



FAQ #3: Can the DTV handle steam?

Yes, the DTV can handle fluid temperatures up to 250°F.



FAQ #4: What sizes are available?

The DTV is offered in 1/2″, 3/4″, and 1″ sizes in both brass and stainless steel.



FAQ #5: How do I select a size?

Use our online DTV Flow Calculator! To view the calculator, click here.



Reliable and self-operating, the DTV ensures drain water temperatures comply with internationally mandated plumbing regulations.

For more information on the DTV or these Drain Tempering Valve FAQs, we invite you to visit our website or to contact our team of product experts.

Your CircuitSolver® FAQs – Answered!

Your CircuitSolver® FAQs – Answered!

We frequently receive questions about DHWS design, CircuitSolver® applications, and our other plumbing products during calls with our representative agencies. Below are some of the most commonly asked questions:

Q1: Do you have to use CircuitSolver® with a variable speed recirculation pump?

A1: No, CircuitSolver®s may be installed in systems using standard fixed speed or variable speed recirculation pumps. However, some features of a variable speed pump, also known as a “smart” pump, can be an excellent match with CircuitSolver®s.

Q2: What happens during system start-up when using a fixed speed pump and CircuitSolver®?

A2: At startup, CircuitSolver® is fully open, therefore GPM is high and head loss is low, allowing the system to balance quickly. As water temperature rises to CircuitSolver® set-point the valve modulates “closed”, adding friction/heat loss and reducing the flow from the pump. As a result, the flow required to offset heat loss will be satisfied.

Q3: How do you size the recirculation pump in systems with CircuitSolver®?

A3: Pumps should be appropriately sized to offset total system heat loss, whether it is a fixed speed or variable speed pump. Systems should not be sized for start-up, they should be sized for normal operation of the recirculation system. The CircuitSolver® Design Guide can help you calculate flow, pressure loss, and the recirculation pump size of your system. The design guide is available on our website’s plumbing specs page here.

Q4: Can CircuitSolver® work in the same recirculation system as an aquastat?

A4: Yes, CircuitSolver® can function in systems with aquastats, however ASHRAE, ASPE, and OSHA strongly advise against turning off recirculation pumps with aquastats.

Q5: Do you have BIM and Revitt files on your website?

A5: Yes! CircuitSolver® BIM and Revitt files are available on our website’s plumbing specs page here: https://circuitsolver.com/plumbingspecs/.

The answers to more CircuitSolver® FAQs can be found on our website: https://circuitsolver.com/faqs/.

If you have any additional product or applications questions, please do not hesitate to email or call.

STVM Washdown Station FAQs

The ThermOmegaTech® STVM® Washdown Station utilizes a silent type venture mixing valve to combine steam and water together to produce a user-defined temperature. This ingeniously designed product is efficient, easy to maintain, and most importantly safe – a necessary addition to any facility that uses washdown stations.

Designed to have a quick startup time and an even shorter downtime, the STVM® features an interchangeable cartridge for ease of maintenance. Unlike other manufacturers’ washdown stations that require a specialized tool and the user to take the unit off the wall to perform regular maintenance, ThermOmegaTech® STVM® Washdown Station requires only a standard wrench and doesn’t need to be moved from its point of installation. Simply unscrew the cartridge from the top of the unit, put in a new cartridge, and the unit is up and running within moments.

As the STVM unit uses steam to heat water, personnel safety is a top priority. If the cold-water supply to the unit is interrupted the thermostatic mixing valve will sense the over-temperature flow and close off, preventing operation. The valve will remain closed until the cold water supply is restored, after which it will automatically open and re-establish flow, protecting both personnel and equipment.

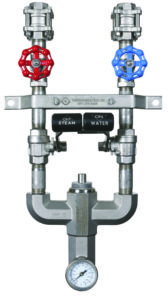

STVM image 168x300 - STVM Washdown Station FAQsFrequently Asked Questions about the STVM Washdown Station:

Q: What is the difference between a 150°F unit and a 185°F unit?
A: These numbers indicate the unit’s over-temperature shutoff point, typically due to a sudden lack of a cold-water supply. Once the unit’s thermostatic actuator senses its set shut-off temperature (either 150°F or 185°F, depending on the model) the internal mixing valve will modulate closed and stop the flow. Only after the cold-water supply has been restored to the unit will the valve modulate open and re-establish flow. The unit’s over-temperature shutoff point is not field adjustable.

Q: How can we make the unit’s downtime for maintenance even shorter?
A: Keep a spare cartridge on hand! Don’t wait for the STVM® Washdown Station to require maintenance to order a new cartridge as the lead time will result in the unit being out of service until the new cartridge is received. By keeping a spare cartridge on hand the station’s downtime is minimized, allowing personnel to get back to work sooner.

For more information on ThermOmegaTech® STVM® Washdown Station, visit our website at: http://www.thermomegatech.com/product/stvm-steam-water-washdown-station/.

Should you have any questions, please do not hesitate to give us a call!

A Washdown Station For Every Application

It is critical to have a washdown station in food processing, dairy, breweries, wineries, chemical, petrochemical, and pharmaceutical facilities to maintain a clean environment. Washdown stations are used to quickly and efficiently clean and sanitize equipment in place between production runs or shift changes.

ThermOmegaTech® offers three different washdown station options:

STVM® Steam & Water Station


STVM image 168x300 - A Washdown Station For Every Application


The STVM® Washdown Station provides an effective high temperature wash in an easy-to-maintain package. Utilizing our patented Silent Venturi Mixing Valve (STVM®) technology, this washdown station mixes together steam and water to produce a high-powered wash at a user-defined temperature.

Designed to be self-scouring, the mixing valve prevents mineral buildup in tight spaces, decreasing maintenance frequency. To further reduce time spent on required regular maintenance, the unit is in-line serviceable. The user simply switches out the STVM® cartridge with another and the unit is back up and running in minutes.

Safety is our priority, so every STVM® Washdown Station has two built-in safety features – interlocking ball valves to prevent steam-only operation, and an automatic shut-off when output is 15°F over the unit’s temperature set-point (either 150°F or 185°F) or when cold water flow is interrupted.


HCX Water & Water Station


WashdownHCX 300x300 - A Washdown Station For Every Application


For facilities without an available steam supply, the HCX Station is an ideal solution. This unit utilizes individual globe valves to mix hot and cold water to a user-defined temperature, clearly displayed on the integrated temperature display gauge.

To prevent accidental scalding, the unit is offered with our unique SmartFlow feature. This in-line, over-temperature safety valve automatically stops flow should the unit’s output exceed a factory specified set-point.


HCS Single-Channel Station


HCS 249x300 - A Washdown Station For Every Application


The HCS Station simplifies washdown applications even further, providing a high-powered single stream of either cold water or pre-heated hot water at the turn of a ball valve. The unit employs an integrated temperature gauge to confirm output temperature.


Should you have any questions about which washdown station is right for your facility, please contact your dedicated local CircuitSolver® representative.

How the ESS Water Heater Keeps Employees Safe

Recognized in the commercial plumbing industry for our innovative line of CircuitSolver® thermostatic balancing valves, our dynamic paraffin wax actuator technology can be used in a wide range of applications for several markets. In addition to the CircuitSolver® line, ThermOmegaTech® plumbing product offerings also include the ESS Water Heater for tepid water delivery to emergency safety showers and face/eyewash stations.

Emergency safety fixtures are critical to employee safety in any workplace where hazardous chemicals are handled. For facilities without a ready supply of steam or hot water, the ESS Water Heater is a safe and reliable solution. Specifically designed to comply with ANSI Z358.1-2014 tepid water standards, this product combines a third-party electric water heater and ThermOmegaTech®’s Therm-O-Mix® Station Water/Water Mixing (WWM).

Homepage ESS 768x430 1 300x168 - How the ESS Water Heater Keeps Employees Safe

When an emergency safety station is activated, cold water from the facility and hot water from the heater enters the Therm-O-Mix® WWM which automatically proportions the two flows into OSHA-approved tepid water which is then delivered to the fixtures.

Unlike instantaneous heaters, the ESS Water Heater will be unaffected by a loss of power.

The industrial-grade water heater has a heavy-duty carbon steel tank with an internal cement lining and external foam insulation to minimize stand-by heat loss. The Therm-O-Mix® WWM functions completely mechanically with no need for a source of electricity. Even if the lights go out, the ESS Water Heater packaged system will continue to provide tepid water and ensure worker safety.

Should you have any questions about this product or application, please do not hesitate to contact our dedicated team of product experts.

CircuitSolver® Union Thermal Disinfection Solves Bacteriological Problems

Q&A with ThermOmegaTech® about the new automatic DHWS balancing valve – CircuitSolver® Union Thermal Disinfection

Being “first” often sets the bar high. As one of the first manufacturers of a thermostatic balancing valve for domestic hot water recirculation systems, The ThermOmegaTech® commitment has not just been to set the bar but also to raise the bar. Since the introduction of its CircuitSolver® in 2012, the company has frequently added components, including ball valves, strainers, check valves, and ProPress ends, to meet customer demand.

In April 2018, the innovation continued with the launch of the CircuitSolver® Union Thermal Disinfection thermostatic balancing valve for domestic hot water systems. The union is integrated with the valve body, which has an optional integral check valve. A vital feature of the CircuitSolver® Union Thermal Disinfection is the new capability to automatically balance a domestic hot water system during a thermal disinfection procedure.

In the following Q&A with ThermOmegaTech®, Plumbing Engineer explores the new product’s features, including its ability to mitigate Legionella and other bacteriological problems.

PE: What makes CircuitSolver® Union Thermal Disinfection different from other valves on the market?

TOT: It has all-stainless steel construction for maximum corrosion resistance and durability. It is NSF61, and NSF372 certified — even though it seems that all components in a domestic hot water system (DHWS) should be certified and most plumbing codes and specifications say they must be, not all balancing valves are certified. The valve is completely automatic, thermostatically balancing the standard recirculation temperature and the high-temperature thermal disinfection cycle. No power, signal, or powered actuators are required, as in other balancing valves.

ThermOmegaTech® design is highly resistant to mineral buildup and the adverse effects of debris in the piping system. It is the only tamper-proof thermostatic balancing valve on the market. Other competitive devices are adjustable for several reasons: those manufacturers don’t manufacture their thermal actuators as ThermOmegaTech® does. They aren’t as flexible and offer all the setpoint variations we can, so their valve is adjustable, making it prone to tampering and/or being set to a temperature other than what the designer specified.

With this valve, the plumbing system designer specifies the desired temperature, and the valves are factory-set to that exact setting.

PE: What are the benefits or special features of the CircuitSolver® Union Thermal Disinfection specific to those designing and specifying thermostatic balancing valves for DHWS?

TOT: CircuitSolver® Union Thermal Disinfection brings the benefits of the standard CircuitSolver® into thermal disinfection applications. There is no manual balancing required. It can simply be installed once the system is turned on, and within minutes the building’s DHWS is balanced. Unlike manual balancing valves or fixed-flow devices, CircuitSolver® Union Thermal Disinfection will automatically go to full open when high-temperature water is being supplied, providing maximum flow for thermal disinfection processes.

Read the full article at PHCPPros.com.

ThermOmegaTech® Releases CircuitSolver® Union Assembly ProPress®

New CircuitSolver® Union Assembly ProPress® combines CircuitSolver® balancing technology and Viega ProPress® ends.

ThermOmegaTech®, a world leader in the design and manufacture of self-actuating, thermostatic valve technology, adds the CircuitSolver® Union Assembly ProPress (CSUA-PP) to its distinguished line of products.

The CircuitSolver® is a domestic hot water system balancing valve that continuously and automatically adjusts the flow through each

CSUA PP TOT Handles 1450x300 1024x212 - ThermOmegaTech® Releases CircuitSolver® Union Assembly ProPress®

 branch of a water recirculation system to maintain the specified temperature at the end of each branch, regardless of fluctuations in demand. The CSUA-PP combines the CircuitSolver® technology professionals’ trust and Viega® ProPress ends for improved ease of installation.

Lauren Berenato, Commercial Plumbing Product Manager at ThermOmegaTech® says, “The CircuitSolver® product line is revolutionizing the plumbing industry by making domestic hot water system balancing automatic and continuous. The CSUA-PP’s Viega ProPress® ends makes it even easier for tradesmen to implement our technology into their systems, saving them time and labor costs.”

Each CSUA-PP incorporates Viega’s Smart Connect Technology. Identifiable by a small dot on each ProPress® end, it allows installers to easily identify un-pressed connections during installation. The CircuitSolver® Union Assembly ProPress is lead-free, resistant to corrosion, and all components are NSF 61 Certified. In addition, each and every CSUA-PP valve is leak tested prior to leaving the factory and comes equipped with long service life and a 3-year warranty.

To view the full article on Mechanical Hub click here.

CircuitSolver® Sanitary Flush Valve Introduced to Protect Against Legionella

ThermOmegaTech®, a world leader in the design and manufacture of self-actuating thermostatic valve technology, introduces the CircuitSolver® Sanitary Flush (CSUSF) Valve as the newest addition to their CircuitSolver® line. The CSUSF allows for higher-temperature water to flow through a domestic hot water system during the disinfection process to protect against Legionella growth in systems capable of high-temperature flushes.

Nick Tallos, Vice President of Engineering for ThermOmegaTech® says, “CircuitSolver® technology was already an innovative balancing method for domestic hot water systems. Now, with the addition of the Sanitary Flush, CircuitSolver® further stands out as a revolutionary technology with a myriad of applications. With its capability to protect against Legionella growth, the CircuitSolver® becomes an even easier and reliable balancing solution. It’s just another step in the right direction.”

CSUSF 338x119 - CircuitSolver® Sanitary Flush Valve Introduced to Protect Against LegionellaThe CircuitSolver® is a thermostatic, self-actuating balancing valve that continuously and automatically adjusts the flow through each branch of a domestic hot water recirculation system to maintain the specified temperature at the end of each branch, regardless of fluctuations in hot water demand.

It is a direct replacement for manual balancing valves and eliminates balancing labor and callbacks. The CSUSF valve uses two high-thrust actuators, a low-temperature actuator to maintain standard balancing temperature, and a high-temperature actuator to allow for high-temperature sanitary flushing of the system.

The CircuitSolver® Sanitary Flush Valve is tamper-proof and automatically balances any domestic hot water system at a set temperature, while still allowing higher water temperatures to enter for disinfection, preventing Legionella growth. It is the ideal solution for a maintenance-free balancing and high-temperature flush application. The CSUSF is lead-free, stainless steel, and corrosion-resistant. The CSUSF valve is NSF/ANSI 61 certified and comes equipped with long service life and a 3-year warranty.

The ThermOmegaTech® CircuitSolver® Sanitary Flush Valve is available for purchase through your local representative.

To view the full article on Mechanical Hub click here.
